Acoustic louvers or grilles are commonly used at air inlets and outlets of noisy enclosures (engine rooms, compressors, transformers, motors, etc.), and to create acoustic barriers and screens.
INERCO Acústica has several models of acoustic louvers and grilles, adaptable in design, acoustic attenuation, air flow, available spaces, pressure losses and % of open surface.
It is suitable for a wide range of applications:
Acoustic louvers or grilles are commonly used at air inlets and outlets of noisy enclosures (engine rooms, compressors, transformers, motors, etc.), and to create acoustic barriers and screens.
INERCO Acústica has several models of acoustic louvers and grilles, adaptable in design, acoustic attenuation, air flow, available spaces, pressure losses and % of open surface.
It is suitable for a wide range of applications:
CHARACTERISTICS
Dimensions:
Attenuation at different sound spectra and type of noise (Simple type):
Attenuation at different sound spectra and type of noise (Double type):
Weight single grid: 70 Kg/m² approximately.
Open surface area: 44% – 57%
High quality acoustic absorber made of mineral fibers, fireproof and imputriscent, finished in black glass fiber fabric of great resistance.
Smooth outer face in galvanized steel and/or finished with a bicomponent polyurethane paint.
Interior Multi-perforated steel sheet to increase protection and acoustic performance.

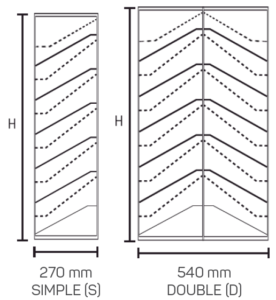

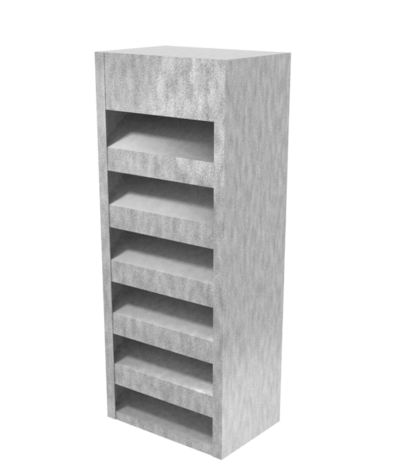

The INALOUVER grille, FLOW type, is a custom-made, with a SINGLE or DOUBLE louver setups.
The maximum width (W) is 3000 mm for each module and the height (H) is fully adaptable, starting from the standardized spacing for each grille model.
Galvanized bird-proof mesh, mosquito netting or both. On the interior or exterior side according to customer’s specification.
ARE YOU INTERESTED OR NEED MORE INFORMATION?
Contact us or request the INALOUVER FLOW data sheet, where you will find more detailed technical and acoustic characteristics of the product.
Contact us or request the INALOUVER FLOW data sheet, where you will find more detailed technical and acoustic characteristics of the product.
