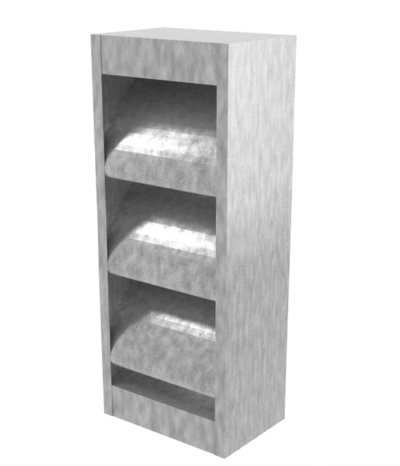

ACOUSTIC LOUVER

Acoustic louvers or grilles are commonly used at air inlets and outlets of noisy enclosures (engine rooms, compressors, transformers, motors, etc.), and to create acoustic barriers and screens.

INERCO Acústica has several models of acoustic louvers and grilles, adaptable in design, acoustic attenuation, air flow, available spaces, pressure losses and % of open surface.

It is suitable for a wide range of applications:

Industry

Fossil Power Plants

Building

Oil & Gas Applications

INALOUVER ALABE

ACOUSTIC LOUVER

Acoustic louvers or grilles are commonly used at air inlets and outlets of noisy enclosures (engine rooms, compressors, transformers, motors, etc.), and to create acoustic barriers and screens.

INERCO Acústica has several models of acoustic louvers and grilles, adaptable in design, acoustic attenuation, air flow, available spaces, pressure losses and % of open surface.

It is suitable for a wide range of applications:

Industry

Fossil Power Plants

Building

Oil & Gas Applications

CHARACTERISTICS

CHARACTERISTICS

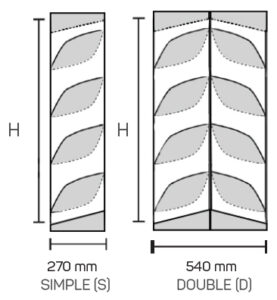

  • Dimensions:

    • (Simple): W x H x 270 mm.
    • (Double): W x H x 540 mm.
      *The height is adapted based on a standardized separation of the blades that comprise the system.
  • Attenuation at different sound spectra and type of noise (Simple type):

    • At pink noise 16 dBA.
    • At air compressor 15 dBA.
    • At pump 16 dBA.
    • At transformer 14 dBA.
  • Attenuation at different sound spectra and type of noise (Double type):

    • At pink noise 22 dBA.
    • At air compressor 22 dBA.
    • At pump 23 dBA.
    • At transformer 18 dBA.
  • Weight single grid: 70 Kg/m² approximately.

  • Open surface area: 30%

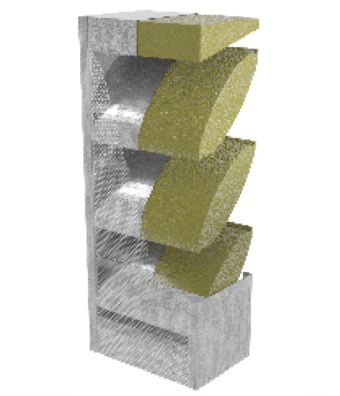

  • High quality acoustic absorber made of mineral fibers, fireproof and imputriscent, finished in black glass fiber fabric of great resistance.

  • Smooth outer face in galvanized steel and/or finished with a bicomponent polyurethane paint.

  • Interior Multi-perforated steel sheet to increase protection and acoustic performance.

  • The INALOUVER grille, ALABE type, is a custom-made, with a SINGLE or DOUBLE louver setups.
    The maximum width (W) is 2000 mm for each module and the height (H) is fully adaptable, starting from the standardized spacing for each grille model.

  • Galvanized bird-proof mesh, mosquito netting or both. On the interior or exterior side according to customer’s specification.
