Echo Barrier is a recoverable acoustic panel for noise reduction, designed to form acoustic screens, acoustic enclosures or acoustic booths. Because of its design and effectiveness, Echo Barrier is ideal for multiple applications:
Echo Barrier
ECHO BARRIER
Reusable acoustic panels to reduce noise.
Industry
HVAC Equipment
Entertainment
Construction machinery
Infrastructure
Building
ECHO BARRIER
Reusable acoustic panels to reduce noise.
Echo Barrier is a recoverable acoustic panel for noise reduction, designed to form acoustic screens, acoustic enclosures or acoustic booths.
Because of its design and effectiveness, Echo Barrier is ideal for multiple applications:
OUR MODELS
ECHO BARRIER H9
Dimensions:
1335 x 2050 mm.
Weight:
5,5 kg/Ud.
Overall sound insulation Rw:
16 dB according to UNE-EN ISO 10140-2:2011.
43 dB at 4.000 Hz frequency.
Sound absorption coefficient αw:
0,25 according to UNE-EN ISO 11654 standard.
Dust behavior:
According to BSEN 60529 standard.
Fire performance:
C-s3, d2 according to UNE-EN ISO 1350 standard.
Water performance:
IPX6/IPX9 according to BSEN 60529 standard.
Temperature behavior:
-40ºC according to BSEN 60068/2 standard.
Tension test:
5,25 kN vertically and 1,10 kN horizontally.
All tests are certified.
ECHO BARRIER HT 3.5
Dimensions:
3650 x 2050 mm.
Weight:
10,5 kg/Ud.
Overall sound insulation Rw:
15 dB according to UNE-EN ISO 10140-2:2011.
38.7 dB at 5,000 Hz frequency.
Sound absorption coefficient αw:
0.20 according to UNE-EN ISO 11654 standard.
Dust behavior:
–
Fire performance:
–
Water performance:
–
Temperature behavior:
-40ºC according to BSEN 60068/2 standard.
Tension test:
5.85 kN vertically and 1.10 kN horizontally.
All tests are certified.
CS CUTTING STATION
Dimensions (width x length x height):
CS: 2400 x 3250 x 2100 mm.
CS COMPACT: 2400 x 2400 x 2100 mm.
Weight:
CS: 118 kg + 18 kg (wheels).
CS COMPACT: 97 kg + 18 kg (wheels).
Overall sound insulation Rw:
16 dB according to UNE-EN ISO 10140-2:2011.
43 dB at 4.000 Hz frequency.
Sound absorption coefficient αw:
0,25 according to UNE-EN ISO 11654 standard.
Dust behavior:
According to BSEN 60529 standard.
Fire performance:
C-s3, d2 according to UNE-EN ISO 1350 standard.
Water performance:
IPX6/IPX9 according to BSEN 60529 standard.
Temperature behavior:
-40ºC according to BSEN 60068/2 standard.
Tension test:
5,25 kN vertically and 1,10 kN horizontally.
All tests are certified.
OUR MODELS
Dimensions:
1350 x 2050 mm.
Weight:
5,5 kg/Ud.
Overall sound insulation Rw:
16 dB according to UNE-EN ISO 10140-2:2011.
43 dB at 4.000 Hz frequency.
Sound absorption coefficient αw:
0,25 according to UNE-EN ISO 11654 standard.
Dust behavior:
According to BSEN 60529 standard.
Fire performance:
C-s3, d2 according to UNE-EN ISO 1350 standard.
Water performance:
IPX6/IPX9 according to BSEN 60529 standard.
Temperature behavior:
-40ºC according to BSEN 60068/2 standard.
Tension test:
5,25 kN vertically and 1,10 kN horizontally.
All tests are certified.
Dimensions:
3650 x 2050 mm.
Weight:
10,5 kg/Ud
Overall sound insulation Rw:
15 dB according to UNE-EN ISO 10140-2:2011.
43 dB at 4.000 Hz frequency.
Sound absorption coefficient αw:
0,25 according to UNE-EN ISO 11654 standard.
Dust behavior:
–
Fire performance:
–
Water performance:
–
Temperature behavior:
-40ºC according to BSEN 60068/2 standard.
Tension test:
5.85 kN vertically and 1.10 kN horizontally.
All tests are certified.
Dimensions (width x length x height):
CS: 2400 x 3250 x 2100 mm.
CS COMPACT: 2400 x 2400 x 2100 mm.
Weight:
CS: 118 kg + 18 kg (wheels).
CS COMPACT: 97 kg + 18 kg (wheels).
Overall sound insulation Rw:
16 dB according to UNE-EN ISO 10140-2:2011.
43 dB at 4.000 Hz frequency.
Sound absorption coefficient αw:
0,25 according to UNE-EN ISO 11654 standard.
Dust behavior:
According to BSEN 60529 standard.
Fire performance:
C-s3, d2 according to UNE-EN ISO 1350 standard.
Water performance:
IPX6/IPX9 according to BSEN 60529 standard.
Temperature behavior:
-40ºC according to BSEN 60068/2 standard.
Tension test:
5,25 kN vertically and 1,10 kN horizontally.
All tests are certified.
OUTER COAT:
Durable, waterproof, high quality PVC, maximum noise reduction.
With reflective stripes:
Allows to be seen in the dark.
MANUFACTURER'S WARRANTY:
24 months warranty for H9 and HT 3.5.12 months warranty for CUTTING STATION CS.
Simpler and more economical foundation and support structure.
OUTER COAT:
Durable, waterproof, high quality PVC, maximum noise reduction.
With reflective stripes:
Allows to be seen in the dark.
MANUFACTURER'S WARRANTY
24 months warranty for H9 and HT 3.5.12 months warranty for CUTTING STATION CS.
Simpler and more economical foundation and support structure.
SIMPLE AND SAFE ASSEMBLY
Its design, size and light weight make the Echo Barrier acoustic screen very quick and easy to install by one person.
In addition, its roll-up design allows for easy transport and storage.
Thanks to its installation through hooks in the strong and rustproof holes of the panel, it will not only be easy to put on and take off, but will also be perfectly secured during use.
SIMPLE AND SAFE ASSEMBLY
Its design, size and light weight make the Echo Barrier acoustic screen very quick and easy to install by one person.
In addition, its roll-up design allows for easy transport and storage.
Thanks to its installation through hooks in the strong and rustproof holes of the panel, it will not only be easy to put on and take off, but will also be perfectly secured during use.

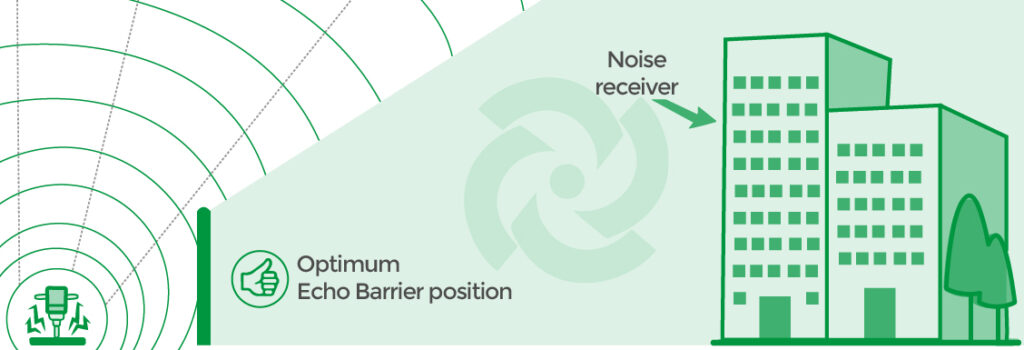

OPTIMUM POSITION
The effectiveness of the ECHO BARRIER will increase depending on its position with respect to the source of the noise and the receiver of this noise.
Optimal position of ECHO BARRIER H9 and HT 3.5.
Optimal position of CS CUTTING STATION.
